Product Introduction

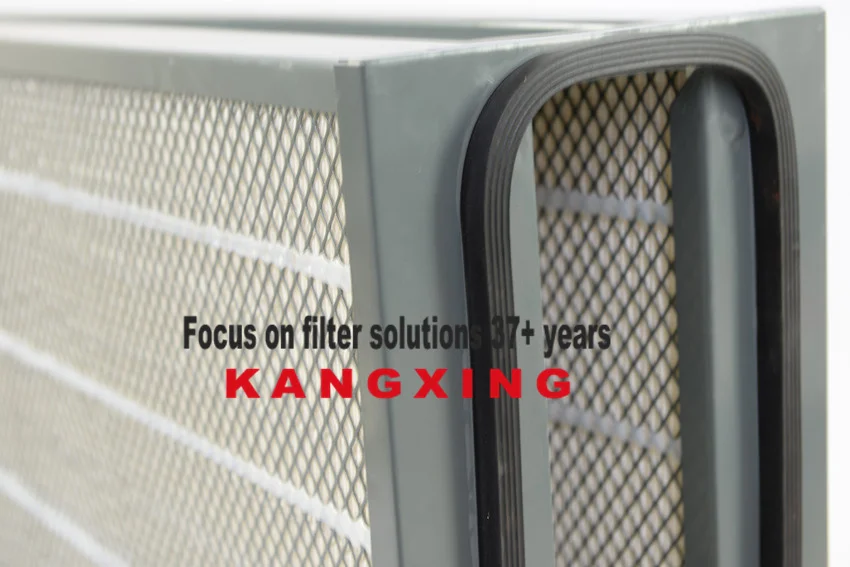

AAF Dust Collector Filter Cartridge Panel Filter Element for Air Purification Filter Panel Pak 8912398050

Product Description



Type:	II Panel Pak CVP610-1220-XXX-50
Efficiency Grade	EN 779:2012 F8
Casing Type	Galvanised Steel
Faceguards	Wire mesh on air entry and air leaving sides
Place of Origin:	Gu'an, China (Mainland)
Brand Name:	KL Filter
Gasket	Closed Cell Neoprene Rubber on air leaving side
Dimension(L*W*H):	610*1220*245mm
Filtration Area	46.5
Certification:	EN779:2012,ISO/TS 16949:2009
Filter Media	Cellulose blended with synthetic fibres
Airflow/Front Velocity Rated	2550 m³/h
Effective Velocity	0.015 m/s at 2550 m³/h
Initial Pressure Drop	363Pa at 2550 m³/h
Final Recommended Pressure	1000Pa
Burst Pressure	>6350Pa
Dust Holding Capacity	7200g at 620Pa
Temperature Limits	90℃
Operating Relative humidity	100%



Structural Features:

1.Galvanized steel end caps



2.Galvanized central core



3.Imported polyester and high quality stainless steel mesh



4.Featured wool felt gasket





Selling products

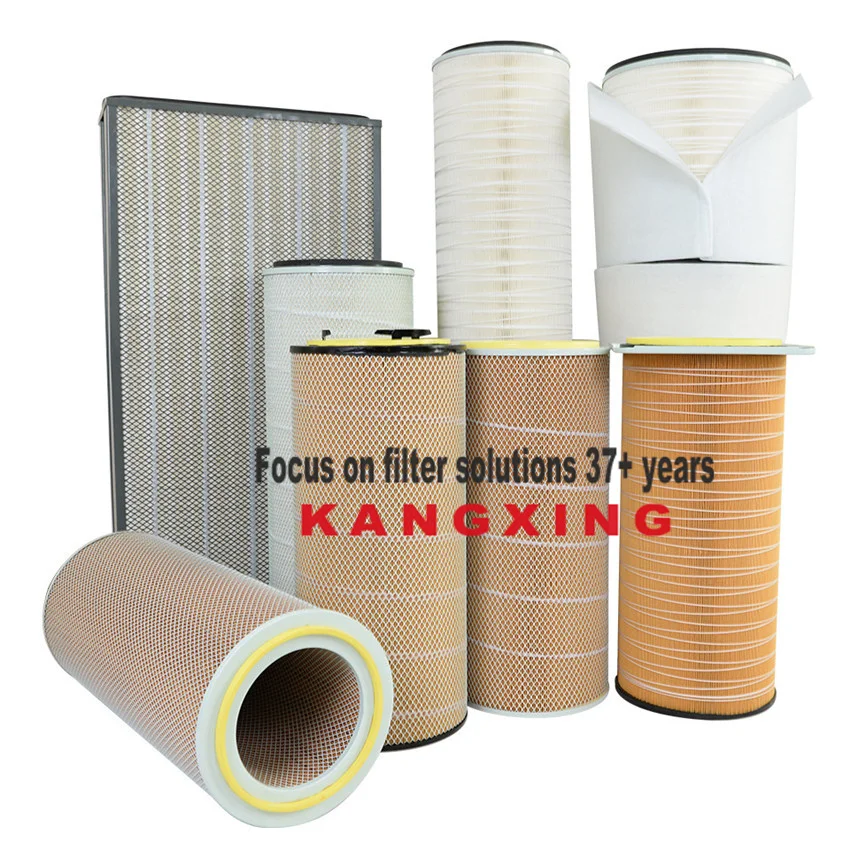

Main Products

Please click on the picture for more products

Company Information

Our Services

Warranty :

Defects in material and workmanship for 2 years from time of installation.

Will last one (1) year of continuous service (8000 hours).

Filter must result in no power loss due to compressor fouling or filter dP increase over 8000 hours of operation.

Packaging & Shipping

FAQ

1.Are you a trading company or manufacturer?

We are professional manufacturer with factory in China, since 1988.

2.What kinds of filter do you produce?

It covers widely for air filter,oil filter,fuel filter for trucks, construction machinery, power plant equipment,compressor-turbine unit etc.

3.Is Customized filter available?

Yes,please offer your required specifications and drawing

4.Can I get you products with our logo and design?

Yes, you can. Most of our products can be customized according to your requirements.

5.How can we get the quotation of filter cartridges ?

Please let us know the specifications, such as the materials, length, macron, apply in which industry etc.

6.Do you Accept OEM service?

YES!

7. Would it be possible for us to visit you factory?

Sure we are very welcome you at any time!

8.What's your delivery terms?

(1)FOB (2)CFR (3)CIF

9.What's your Delivery Time?

1)generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock

2)Normally within 15 to 30 days,please confirm with us before order!

10.What's the Payment Terms?

Usually,30% as deposit,70% before shipment by T/T

Western Union acceptable for small amount.

L/C acceptable for large amount.

Escrow, Paybal, Alipay Credit card are also available

11.How to solve the quality problem?

If the products are not comfort to customer sample or have quality problems, our company will be responsible to make a composition for it.

12.How you pack products?

Normally, poly bag inside and carton outside .We'll do according to customers' requirement.

13.What's your available port of Shipment?

Normally, Shanghai and Tianjin

Other ports available but you should afford extra charges.
