Product Introduction

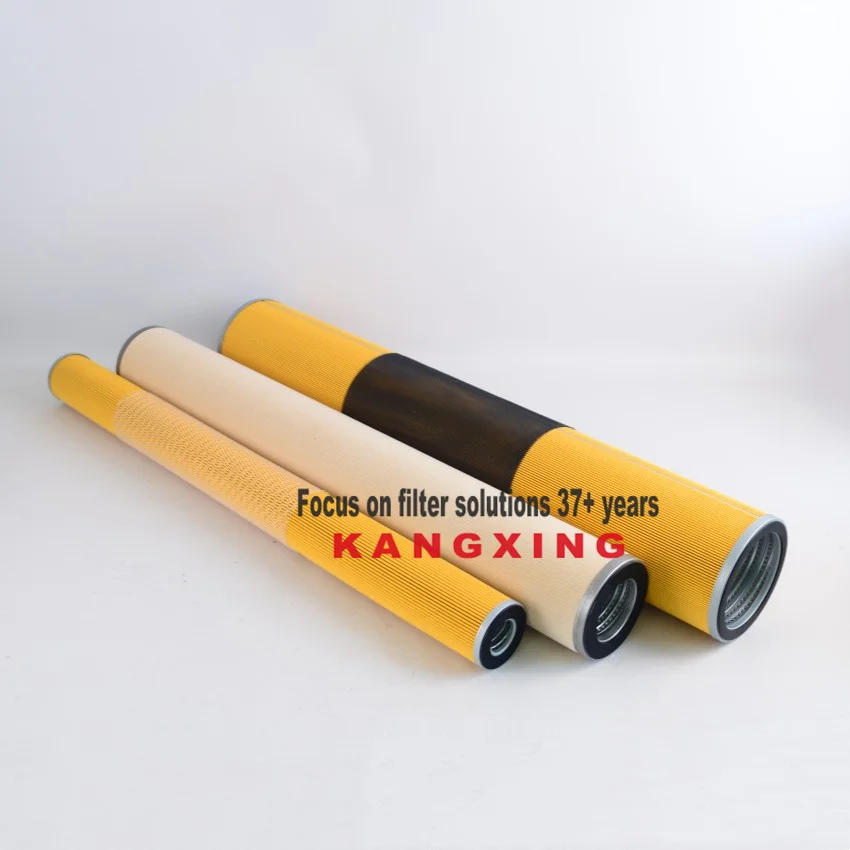

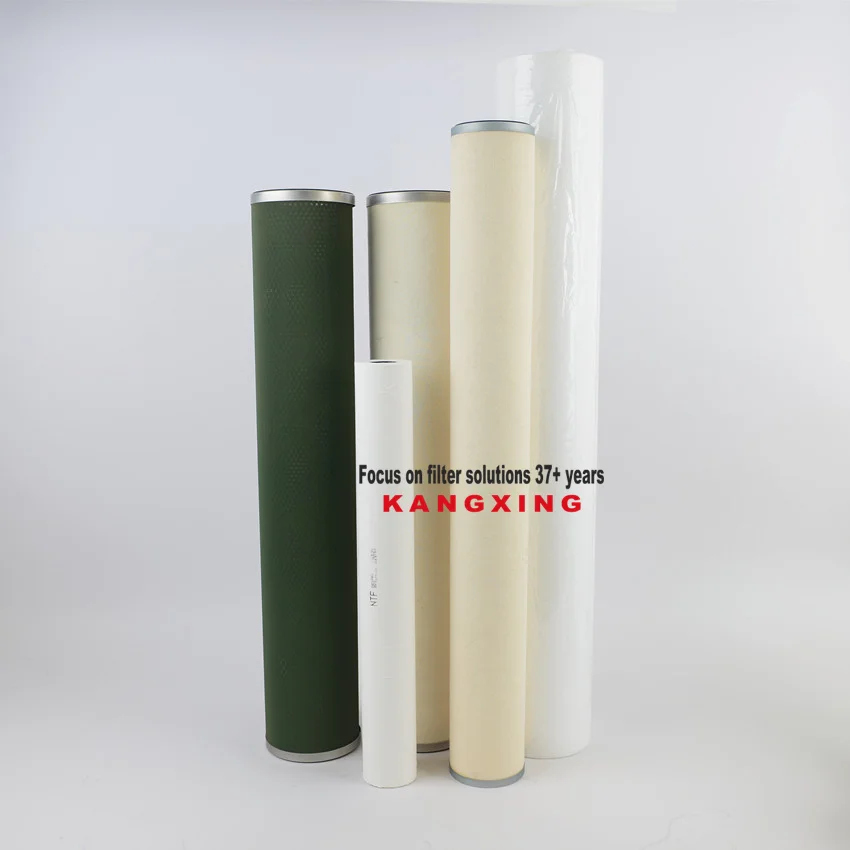

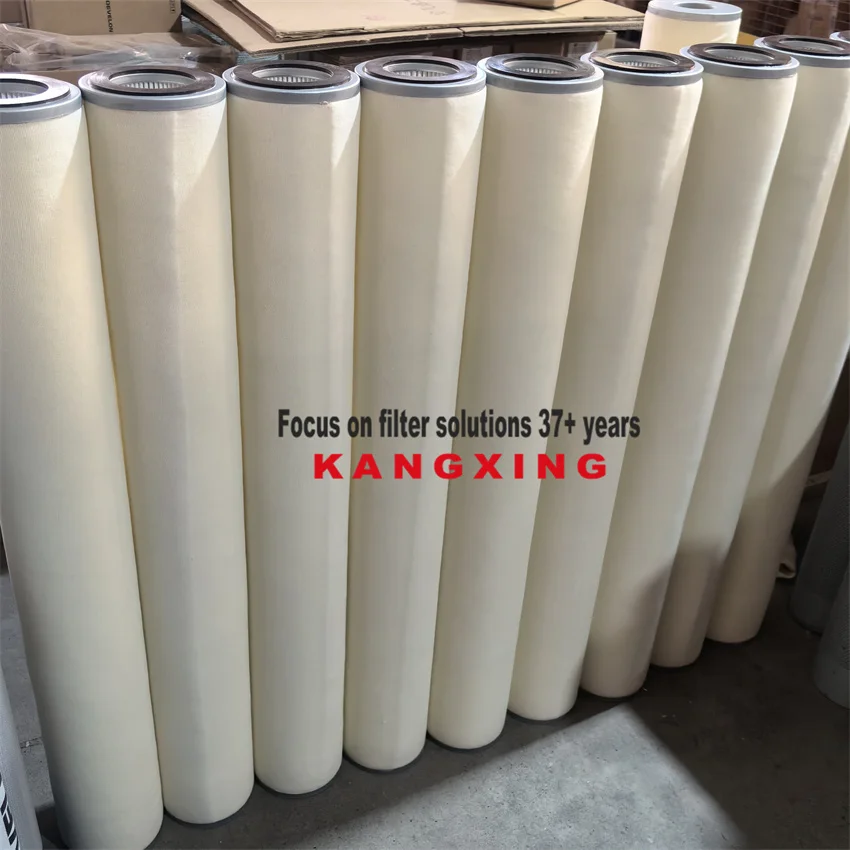

Gas filter element

Product Description





Medium	Aardgas, Biogas, Industrieel gas
Application	Industrial
Function	Solid Removal
Flow Direction	Outside-to-Inside
Micron Rating	0,1 0.3 0.5 1 5 10
Maximum operating temperature (°F)	240 °F
Maximum operating temperature (°C)	116 °C
End Cap Configuration	Open End & Blind Opposite
Seal Material	Buna-N Viton EPDM

Media	Polyester or Polypropylene
Core	Plated Steel (if required)
End caps	Integral End Caps (Standard – No Gasket Seal Required) Plated Steel (Optional)
Seals	None (Standard), Buna-N, EPDM, Viton
Operating data
Flow direction	Outside-to-Inside
Max. Temp.	Polypropylene 180ºF / 82ºC
	Polyester 240ºF / 116ºC
Max. differential pressure
3.0'' OD	25 psid (no core) / 1.7 bar (no core)
	50 psid (with core) / 3.4 bar (with core)
4.5'' OD	25 psid (no core) / 1.7 bar (no core)
	50 psid (with core) / 3.4 bar (with core)
5.5'' OD	35 psid (with core) / 2.4 bar (with core)
Recommended change-out
Differential pressure	12–15 psi / 0.8–1.0 bar
Max. pressure may be limited by housing manufacturer’s design

making a unique depth style filter cartridge. Through thermal bonding, spiral layers of engineered filtration media are applied to conform and overlap each previous layer forming a conical helix pattern. This filter structure results in a gradient density pattern that provides an extraordinary flow path in radial, axial and helical directions. This tortuous flow path yields high contaminant loading, structural strength, maximum efficiency, and an overall outstanding filtration performance.

Removes Contaminants such as:

-Asphaltenes

-Coal Fines

-Dirt

-Iron Sulfides

-Molecular Sieve Dust

-Pipe Scale

-Salts

-Sand

-Wear Metals

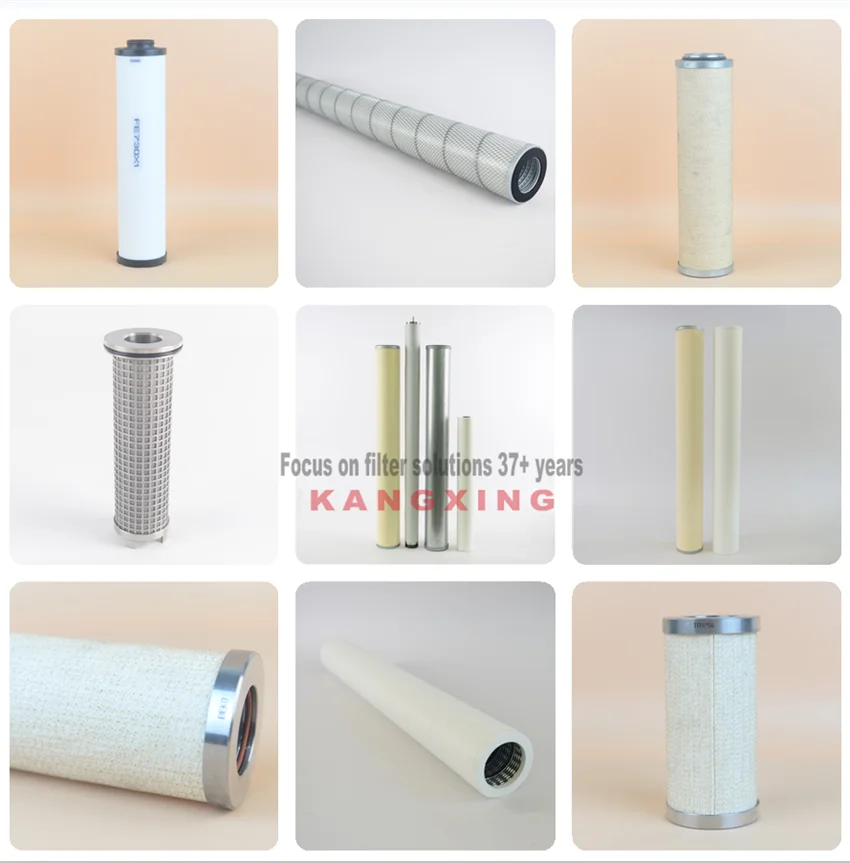

Selling products



Product information



cartridge is a great choice for removing deformable & shear- sensitive contaminants found in natural gas streams. This cartridge can be used in the PECO Series 75 and Series 85 vessels, as well as in several competitor filter-separator vessels. The synthetic construction allows for an environmentally friendly product and an excellent upgrade option to traditional fiberglass cartridges. The Series PCHG is made using the patented PEACH process which provides increased flow, high efficiency and effective removal of contaminants. This equates to increased operational life, fewer change-outs, reduced maintenance and reduced costs.



Please click to learn more

Main Products

Please click on the picture for more products

Company Information

Our Services

Warranty :

Defects in material and workmanship for 2 years from time of installation.

Will last one (1) year of continuous service (8000 hours).

Filter must result in no power loss due to compressor fouling or filter dP increase over 8000 hours of operation.

Packaging & Shipping

FAQ

1.Are you a trading company or manufacturer?

We are professional manufacturer with factory in China, since 1988.

2.What kinds of filter do you produce?

It covers widely for air filter,oil filter,fuel filter for trucks, construction machinery, power plant equipment,compressor-turbine unit etc.

3.Is Customized filter available?

Yes,please offer your required specifications and drawing

4.Can I get you products with our logo and design?

Yes, you can. Most of our products can be customized according to your requirements.

5.How can we get the quotation of filter cartridges ?

Please let us know the specifications, such as the materials, length, macron, apply in which industry etc.

6.Do you Accept OEM service?

YES!

7. Would it be possible for us to visit you factory?

Sure we are very welcome you at any time!

8.What's your delivery terms?

(1)FOB (2)CFR (3)CIF

9.What's your Delivery Time?

1)generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock

2)Normally within 15 to 30 days,please confirm with us before order!

10.What's the Payment Terms?

Usually,30% as deposit,70% before shipment by T/T

Western Union acceptable for small amount.

L/C acceptable for large amount.

Escrow, Paybal, Alipay Credit card are also available

11.How to solve the quality problem?

If the products are not comfort to customer sample or have quality problems, our company will be responsible to make a composition for it.

12.How you pack products?

Normally, poly bag inside and carton outside .We'll do according to customers' requirement.

13.What's your available port of Shipment?

Normally, Shanghai and Tianjin

Other ports available but you should afford extra charges.
