Product Introduction

Donaldson p191550 gas turbine air filter

Donaldson p191550  gas turbine air filter

Product Description



Quick Details :
Condition:	New
Efficiency:	99.99%
Construction:	Cartridge Filter
Filtration Grade:	Hepa Filter
Medium Material:	Synthetic Fiber
Certification:	EN779:2012,ISO/TS 16949:2009
Warranty:	one year
After-sales Service Provided:	No engineers available to service machinery overseas
description:	p191550  gas turbine air filter
Service:	OEM/ODM
material:	Cellulose
use in:	windy sand,moist climate environment
filtration efficiency:	High
Excellent ability:	moisture proof, water proof, Antiflaming
configuration:	Galvanized stainless metal,E-coating, Seepage zinc plate
seal:	Rubber seal
business type:	manufacturer,factory

Models:

211812001	211736005	211736014
211736001	211736006	211736015
211736002	211736009	211736017
211736003	211736010	211872001
211872002	211872003	211872004
For more models, please contact us directly!

211736004 air filter is used to remove dust and contaminants from the air, ensuring clean air output. This filter element uses high-quality filter media and advanced technology to provide the best air filtration results.

The advantage of 211736004 air filter is that it is very durable and can last for months without having to be replaced. In addition, it is very easy to maintain, requiring only regular cleaning of the filter element to restore its original filtration effect.



Selling products

Product information

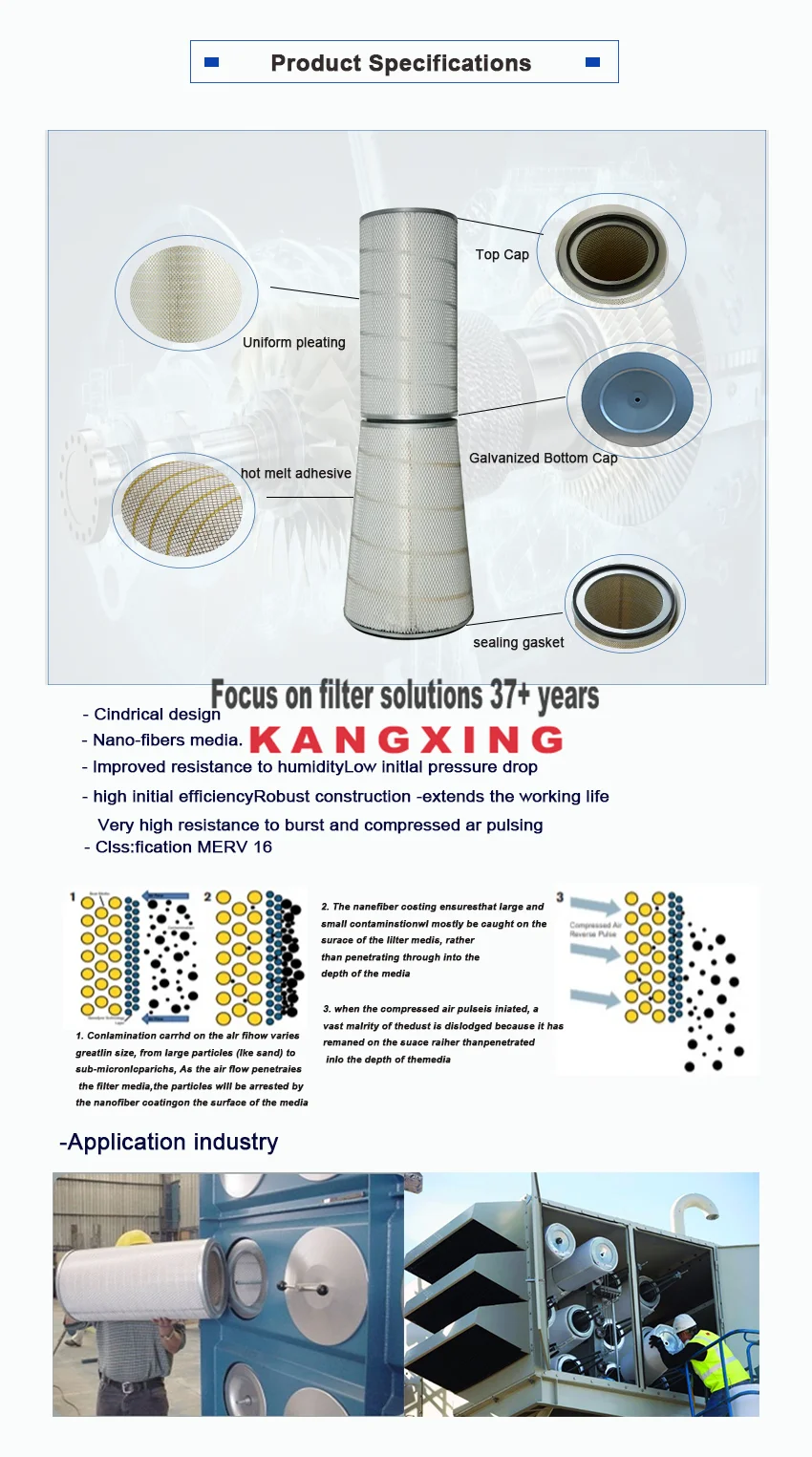

Construction of gas turbine air filter:

Filter media – fully synthetic composite.

End caps – Electrostatic-Coating, Seepage zinc plate, Galvanized (ASTM A653, 60G TST, both sides) or stainless steel.

In / Outside Liner – Electrostatic-Coating, Seepage zinc plate, Galvanized (ASTM A653, 60G TST, both sides) or stainless steel.

Potting – Media shall be permanently and completely bonded to the end caps with Polyurethane or Plastisol or epoxy sealant.

Gasket – Seamless EPDM rubber (ethylene propylene diene monomer rubber - ASTM D1418) or molded in place urethane or polyisoprene sponge rubber.

Pleats are to be stabilized by hot-melt adhesive on both inner and outer cores.

Filters are to have polyester coalescing wrap (per-filter) pre-installed by the manufacturer.

Performance of gas turbine air filter:

Efficiency - F9. Minimum 99.9% (HEPA).

Hydrophobic (water proof),  moisture proof,  Antiflaming.

Salt Repellent – must remove 99.5% of all salt crystals from turbine inlet air.

Wet Burst Pressure – greater than 7500 Pa (30” wc).

Initial Pressure Drop – 180 Pa @ 2500 m3/h (.72” wc @ 1472 cfm).

Temperature Range -   -40°C to +65°C (-40°F to +149°F).

Humidity Range – 0 to 100% relative humidity.

Flame Retardance – E d 2 according to EN 13501.

Must result in no (0%) Combustion Turbine Mega Watt power loss in 8000 hours of operation.

Must fit into air inlet systems without modification.

Manufacturing tolerances and joint details shall be such that no gaps or air/water leaks occur in the assembly after installation and during operation.

The performance of the filters is to match (or better) the below charts.

Operation Mode
1	Pulse cleanable and static.
2	Must last longer than one year of continuous service (8000 hours).
3	Operational environment – Marine, coastal, tropical and semi-tropical environments.



Please click to learn more

Main Products

Please click on the picture for more products

Company Information

Our Services

2026-06-04

Warranty :

Defects in material and workmanship for 2 years from time of installation.

Will last one (1) year of continuous service (8000 hours).

Filter must result in no power loss due to compressor fouling or filter dP increase over 8000 hours of operation.
